30A One Stage EMI Suppression Filter 30-100dB AC Line Emi Filter

Brand Name : VIIP

Model Number : VIP4-1B-30

Certification : CE ROHS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 2000 pcs within 10-15 days

Packaging Details : 33*33*18

Rated current : 30A

Type : EMI Suppression Filter

Line to line : 1450VDC

Application : Electronic Equipments

Package type : Surface Mount

Contact Now

30 Ampere EMI Suppression Filter , Electromagnetic Interference Filter

Quick Detail:

Place of Origin China
Model Number VIP4-1B-30
Input Impedance 50Ω
Insertion Loss 30-100dB
Line To Line 1760VDC
Nominal Center Frequency 150KHZ~30MHZ
Certificate ISO9001 CE ROHS cUL TUV
Operating Frequency 50/60HZ
Temperature Range 25 / 085 / 21

One stage common mode filters with excellent affect. General purpose AC filters with good attenuation performance at frequency range 150khz-30Mhz

Tabulates of single phase emi filter:

Part No. Rated Current [A] 250VAC/50Hz @ 20C
Leakage Current [mA]		 Physical Dimensions Electrical Schematics Terminals Weight [g]
screw terminal block wires
VIP4-1A-01 1A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP4-1A-03 3A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP4-1A-06 6A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP4-1A-10 10A <0.5mA Fig 2 Fig 1 - - - 0 - - - 75
VIP4-1B-06 6A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 140
VIP4-1B-10 10A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 170
VIP4-1B-20 20A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 170
VIP4-1B-30 30A <1.0mA Fig 5 Fig 2 M6 - - - - - - 320
VIP4-1B-50 50A <2.0mA Fig 5 Fig 2 M6 - - - - - - 600
VIP4-1B-100 100A <2.0mA Fig 5 Fig 2 M8 - - - - - - 1380
VIP4-1B-150 150A <2.0mA Fig 5 Fig 2 M10 - - - - - - 1900
VIP4-1B-200 200A <2.0mA Fig 5 Fig 2 M10 - - - - - - 1900

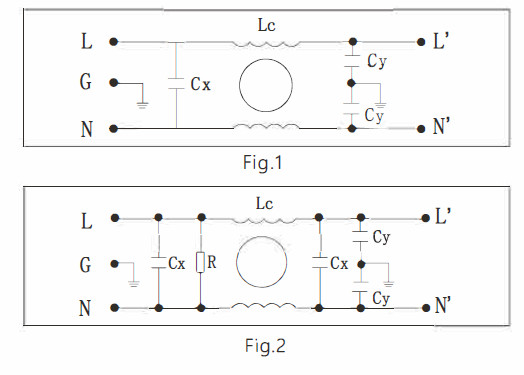

Electrical schematic:

30A One Stage EMI Suppression Filter 30-100dB AC Line Emi Filter

Mechanical Dimension(Unit: mm)
30A One Stage EMI Suppression Filter 30-100dB AC Line Emi Filter

　 　 A B C D E F G H 　 K L M N p Q
VIP4-1B 　 51 51 29 73 --- 73 63 --- Φ4.5 25 10 22 --- 15.5 6.3*0.8
6A 　 　 　 　 　 　 　 --- 　 　 　 　 　 　 　
　 51 51 29 86 --- 86 63 --- Φ4.5 25 10 9 3.4 15.5 M4
　 　 　 　 　 　 　 --- 　 　 　 　 　 　 　
　 51 51 29 73 --- 73 63 --- Φ4.5 25 10 22 --- 15.5 6.3*0.8
10A 　 　 　 　 　 　 　 --- 　 　 　 　 　 　 　
　 51 51 29 86 --- 86 63 --- Φ4.5 25 10 22 3.4 15.5 M4
　 　 　 　 　 　 　 　 --- 　 　 　 　 　 　 　
　 51 51 29 73 --- 73 63 --- Φ4.5 25 10 22 --- 15.5 6.3*0.8
20A 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
　 51 51 29 84 --- 84 63 --- Φ4.5 25 20 8.5 2.5 --- M4
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
30A 63 51 38 85 --- 104 75 --- Φ5.0 25 25 9 3.8 --- M6
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
50A 96 80 42 --- 105 137 50 95 Φ4.0 6 42 20 20 3.4 M6
　 　
100A 120 100 50 　 130 184 80 115 Φ4.0 6 66 28 10 9 M8
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
150A 150 105 60 　 135 214 90 120 Φ4.0 6 50 35 15 4.8 M10
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
200A 150 105 60 　 135 213 90 120 Φ4.0 6 50 35 15 4.4 M10
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
Tolerances ±1 ±1 土1 土1 ±1 ±1 土0 5 土0 5 土0 5 土0 5 土0 5 土0 5 土0 5 土0 5 　

Applications:

1. Electrical and electronic equipment

2. Medical equipment

3. Datacom equipment

4. Office automation equipment
